• Grading and excavating

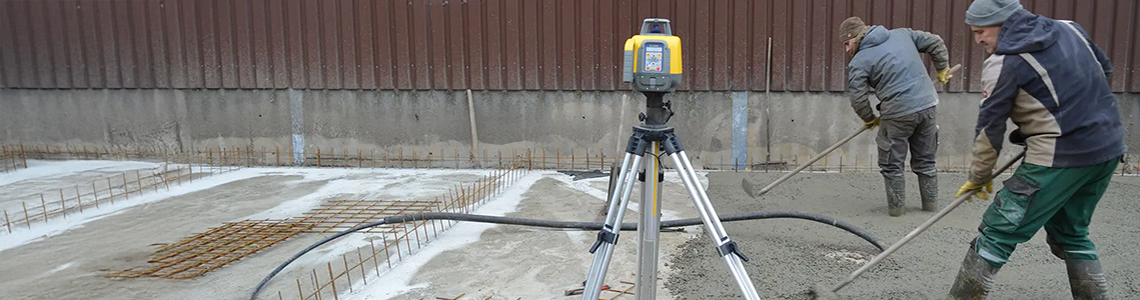

• Levelling concrete forms and footers
• General construction vertical alignment and plumb such as anchor bolt and form alignment
• Sports fields, tennis courts and driveways
• Steep slope road embankments and ditch banks
• Ramps and drainage

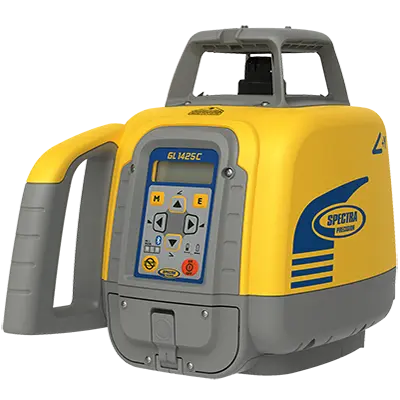

The self-leveling GL1425C dual grade laser is a rugged, cost-effective tool that handles leveling, grading, and vertical alignment. Designed for tough job site conditions, it provides reliable, accurate performance, allowing you to work faster (up to 900 rpm) and more efficiently. With built-in Bluetooth and a dedicated Laser Remote App, the GL1425C offers enhanced control and convenience.
• New menu-driven interface
• Range up to 330 feet
• Single-person operation
• Illuminated backlit LCD display
• Long 130 hour battery life
• IP66 dust-proof and water-proof
• Self-Levelling – Automatic horizontal and vertical levelling
• Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
• Working range of 800 m (2,600 ft) diameter
• Automatic Grade Matching – Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok
• Height of Instrument Alert – unit stops rotating when jarred to avoid erroneous readings
• Rotation selection of 300, 600 or 900 RPM |
• Rugged – Extremely durable and portable
• 5 Year warranty
• Simplifies level, grade and vertical alignment setups
• Increases reliability, accuracy and durability
• Easy to transport, easy to carry, easy to store
• Energy-efficient design offers long battery life
• Highly durable design enables the GL1425C to survive a drop up to 1 m (3 feet) onto concrete
• Remote control or remote control app allows operation of all laser functions from anywhere on the job-site
• Multiple configuration options
Grade Range, No tilt adjustment
typ. ± 9 %
Grade Range with tilt adjustment
± 15 %
Rotation Speed
300, 600, 900 rpm
Operational Diameter, with HL760
800 m (2600 ft)
Laser Type
630 – 643 nm
Laser Class
Class 2
Self Levelling Range
Typ. ± 5° (± 8.7%)
Radio Range (HL760)
Up to 100m (330 ft)
Power Source
10000 mAh NiMH battery back
or 4 x 1.5V D alkaline batteries
Battery Life Time
Typ. 45 hours
Battery Charging Time
< 10 hours
Tripod Attachments
5/8 x 11 horizontally and vertically
Dust and Water Proof (IP)
IP66
