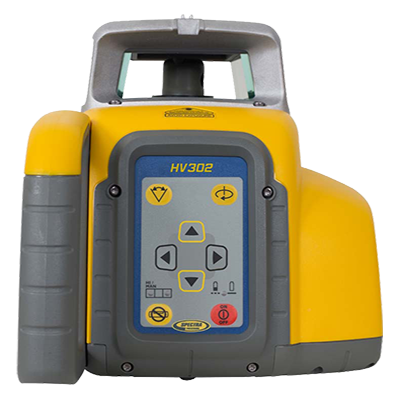

Power through any job with the HV302, designed for horizontal, vertical, and plumb applications in all projects. Its high-visibility beam allows for simultaneous rotating and 90-degree plumb references, even in bright interiors. Multiple configurations ensure the perfect tool for every job.
Key features & benefits:
• Automatic horizontal and vertical self-levelling
• Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
• Working range of up to 800 m (2,600 ft) diameter
• High-visibility beam – easily visible even in brightly lit conditions
• Split beam – enables plumb point transfer and 90-degree layout
• Height of Instrument Alert – unit stops rotating when jarred to avoid erroneous readings
• Long range RC402N Radio remote control
• Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok.
• Extremely durable and portable 5 Year warranty
Select your HV302 package along with your preferred receiver.
HL450 Digital Readout
Receiver to measure and display beam location.
HL760 | HL760U Receiver
Advanced HL760 Digital Readout Radio Receiver to measure and display beam location.
Specifications
Levelling Accuracy
± 1.5 mm/30 m, 1/16“ @ 100 ft.
10 arc seconds
Operating Diameter w/HL760
appr. 800 m (2600 feet)
Rotation
0, 10, 80, 200, 600 rpm
Scan Angles
5°, 15°, 45°, 90°, 180° and 0
Laser Type
red diode laser 600-680 nm
Laser Class
Class 3A/3R, max. 5 mW
Class 2 (Europe)
Self-levelling Range
± 5° (±9%)
Levelling Indicators
LED flashes
Radio Range (HL760)
up to 100 m (330 ft)
Power Source
10,000 mAh NiMH battery back
Battery Life
45 hours NiMH; 60 hours alkaline
Operating Temperature
-20°C to 50°C (-4°F to 122°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Tripod Attachments
5/8 x 11 horizontally and vertically
Dust and Waterproof
Yes – IP66
Weight
3.1 kg (6.8 lbs)
Low Voltage Indication
LED battery indicator
Low Voltage Disconnection
Unit shuts off
Warranty
5 Years
