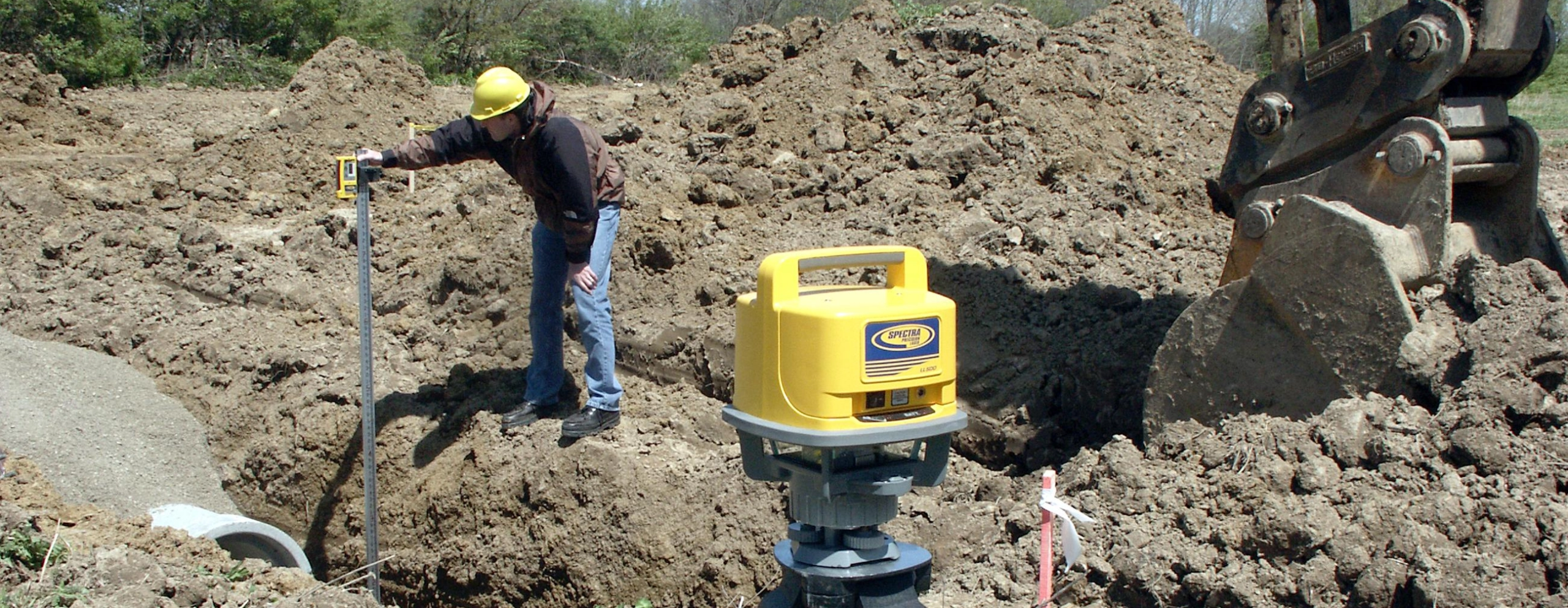

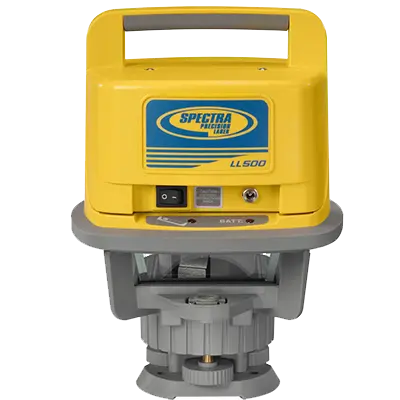

The LL500 Laser Level is a one-person levelling system designed for long-range measurements across large sites. With a 1,650 ft (500 m) working diameter, it delivers accuracy, stability, and reliability, boosting productivity by minimising the need for multiple setups on expansive job sites.
Every superpower has a companion.
Digital Readout
Six On-Grade Sensitivities
-
Ultra Fine 0.5 mm (1/32 in)
-
Super Fine 1 mm (1/16 in)
-
Fine 2 mm (1/8 in)
-
Medium 5 mm (1/4 in)
-
Coarse 10 mm (1/2 in)
-
Calibration Mode 0.1 mm (1/64 in)
Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Battery Life (AA-2)
60+ hours continuous operation
Weight
0.27kg(91/2oz)
Reception Height
127mm(5inches)
Dust & Waterproof
Yes
Warranty
3 Years “No Excuses”
Features and benefits
Temperature Compensation – provides highly stable, repeatable accuracy even under large temperature changes
One Person Elevation Control – with 1,650 ft (500 m) diameter range increases productivity
Maintains Performance – Maintains performance, even in harsh job site conditions
Proven Workhorse – Trusted Over 40 years
Self-levelling – with built-in shut off for increased accuracy over the entire work area and reduced errors
Accuracy and Range – Ideally suited for high-accuracy job sites, including concrete work
Specifications
Self-Levelling Range
±11 arc minutes
Compensation Type
Wire Hung, Air Damped
Accuracy
1.5 mm at 30 m (1/16 in at 100 ft)
Laser Type
670nm visible, Class 2
Battery Life 20°C (68°F)
4 D-Cell Alkaline – 175 hrs NiMH – 100 hrs.
Operating Diameter
500m (1,600ft)
Operating Temperature
-20°C to 50°C (-4°F to 122°F)
Weight
3.6 kg (8 lbs)
Tripod Mount
5/8 in x 11
Warranty
5 Years
