• Excavating Receivers

    Built with the specifics of your job in mind.

Designed for cost-conscious site prep contractors, these receivers improve productivity and reduce material costs, offering a strong return on investment. The Laser Machine Display Receiver works as a standalone display on grading equipment like dozers, scrapers, skid steers, and levellers.

Meanwhile, Combination Receivers are versatile for both excavation and grading, suitable for dozers, excavators, backhoes, scrapers, and box blades. With selectable accuracies for various job tolerances, from rough grading to final finishing, these receivers provide maximum flexibility.

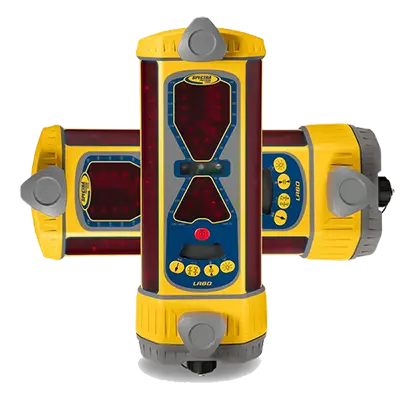

LR60 & LR60W

Step Up to More Power

The LR60 and LR60W Laser Machine Display Receivers are designed as standalone display receivers for grading and excavating equipment such as dozers, excavators, backhoes, scrapers, and box blades.

Features and benefits

  • Check grade with the dipper arm extended or retracted up to 30 degrees
  • Built-in plumb indicator for fast, accurate grade checking for graders
  • Centre On-grade provides an equal amount of grade information above and below on-grade. Use on dozers, graders, scrapers and box blades
  • Offset on-grade for productive excavation provides additional above grade information for less undercuts
  • Up to eight channels of grade information plus directional out-of-beam indicators
  • Four selectable accuracies for each on-grade location
  • LR60W used with Spectra Precision RD20 Wireless Remote Display

RD20 Wireless Remote Display Wireless Remote mounts in the cab and displays grade information to the operator. Helps keep focus on the work and not on the receiver for higher productivity. Works with LR30W, LR50W & LR60W.

Versatile, 360-Degree Reception
Works with all types of rotating lasers and on all types of machinery for fast, no-hassle setup

Multiple Accuracy Choices
Offers maximum flexibility to meet job site requirements, from rough grading to final finishing

Wireless Remote Capability
Provides in-cab display of elevation and audible signals.

Many Uses

Backhoes
Excavators
Skid Steer Attachments
Box Blades
Dozers
Trenchers

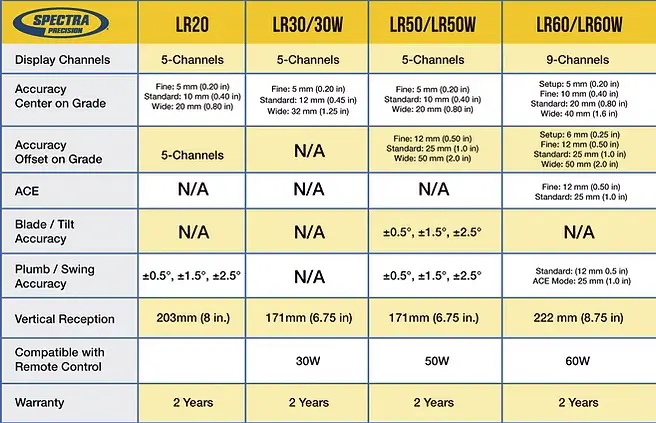

Specifications
