Compact and Versatile

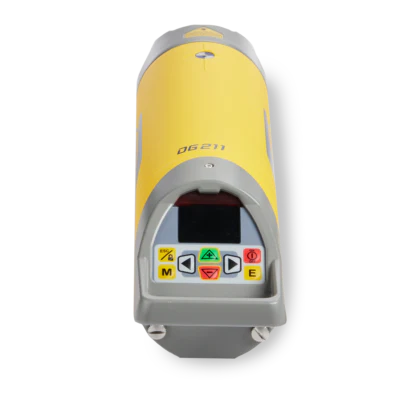

The DG211 is a compact, automatic self-leveling pipe laser designed for installing gravity-flow sanitary pipes. With a grade range of -20% to +30%, it meets diverse jobsite requirements and fits pipes as small as 100 mm (4 in) in diameter.
Equipped with a rechargeable Li-Ion battery pack, the DG211 offers up to 36 hours of operation. For added convenience, alkaline batteries can be used as a backup, eliminating concerns about power loss or forgetting to recharge.
The laser comes with legs for centering in 125 mm (5 in) pipes, and the feet can be removed to centre in 100 mm (4 in) pipes. Optional sets are available for pipe sizes up to 300 mm (12 in).
Part Of a Duo
Remote Control RC201
• IR operating range (front, through pipe) 150m
• IR operating range (back) 10m
• Power source 2 x 1.5 V AA alkaline batteries
• Weight 153 g / 0.34 lbs w/o batteries
• Dimensions 148 x 79 x 33 mm / 5.83 x 3.11 x1.3 in
• Warranty 2 Years
Features and benefits
Automatic self-levelling
Grade Range of -20% to +30%
Level Accuracy 1.5mm @ 30m (1/16 inch @ 100 ft)
Working range of 150m (500 ft)
Durable Waterproof and Dust-proof
Long Li-Ion battery life with alkaline backup
Remote Control for ease of operation
Multiple leg set for various pipe diameters
Roll Alert if pipe laser is moved beyond limit
3 Year Warranty
Specifications
Accuracy, Level 1
± 1.5 mm / 30 m (1/16” @ 100 ft.)
Accuracy, Grade 1
± 9 mm / 30 m (1/4” @ 70 ft.)
Accuracy, Grade, Temperature
± 0.6 mm / 30 m per °Celsius
(± 3/128” @ 100 ft.; per 1.8°Fahrenheit)
Operational Area
Up to 150 m (500 feet)
Laser Type
600 – 680 nm
Laser Class
3A/3R OR 2
Grade Range
-20% to +30%
Self-Levelling Range
-10% to +25%
Battery Life Li-Ion Pack
36 hrs
Li-Ion Pack Charging Time
< 6 hrs
Alkaline Batteries Back Up
4 x C-Cells
4 x C-Cells
Operating Temperature
-10°C to 50°C (14°F to122°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Dust and Waterproof
IP68
Weight
2868 g (6.3 lbs) (inlcl. Li-Ion pack)
Product Length
372 mm (14.65 in)
Diameter
96 mm (3.78 in)
Warranty
3 Years
